Stock Vacuum Components
Vacuum Flanges
Concept Vacuum hold stock of KF, large ISO and CF vacuum flanges, blind or bored. CF flanges are available with clearance or tapped (metric or imperial) bolt holes. Standard material is 304L, but we also supply flanges in 316L, 316LN, aluminium and titanium. Let us know what you need and we will be pleased to quote. Feel free to send us part codes from other manufacturers, we will recognise them.
Gaskets and seals
Concept Vacuum hold stock of seals for KF, large ISO and CF flanges. Centering rings are stainless steel, aluminium or a combination, and O-rings are nitrile or fluorocarbon (Viton®). CF flanges are sealed with copper gaskets, and these can be supplied annealed for mounting fragile items such as viewports. Other CF gasket options include aluminium, nickel, fluorocarbon, gold plating and silver plating. Let us know what you need and we will be pleased to quote. Feel free to send us part codes from other manufacturers, we will recognise them.
Securing
Concept Vacuum supply all the nuts, bolt, clamps, nut plates, etc. required to fasten your vacuum flanges and create a secure seal. Let us know what you need and we will be pleased to quote.

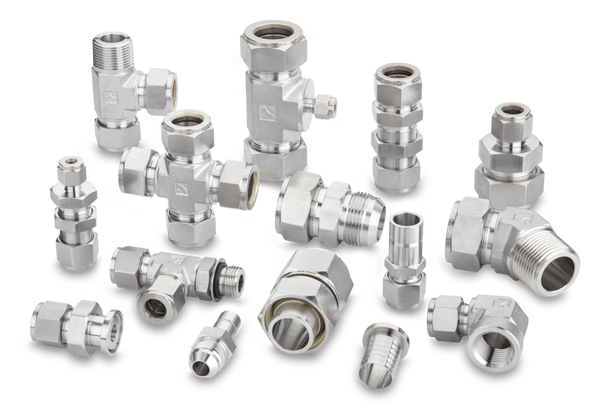

Tube Fittings
Concept Vacuum hold stock of high-purity stainless steel tube fittings and valves. Let us know what you need and we will be pleased to quote. Feel free to send us part codes from other manufacturers, we will recognise them.
- Face seal (VCR)
- Straight unions and Elbows
- Bulkhead connectors
- Tees and crosses
- O-ring seals
- Pipe threads
- Valves (ball, relief, check etc.)
Viewports
Concept Vacuum offer most glass (borosilicate) and fused silica viewports from stock. For other materials and options such as anti-reflective (AR) coating please see our viewports page. We offer a wide range of optics and other stock vacuum components.
Vented Screws
Concept Vacuum stock a wide range of vented stainless steel screws, and offers other sizes and styles on short lead times. Vented screws prevent trapped gas volumes within the vacuum chamber which present as virtual leaks. Let us know what you need and we will be pleased to quote.
High Purity Alumina
Concept Vacuum stock a wide range of alumina tubes and rods, and offers other sizes and styles on short lead times. Our high purity alumina components are suitable for use in ultra-high vacuum (UHV) applications. Tubes are available with single or multiple bores. We can also machine custom components out of alumina. Let us know what you need and we will be pleased to quote.

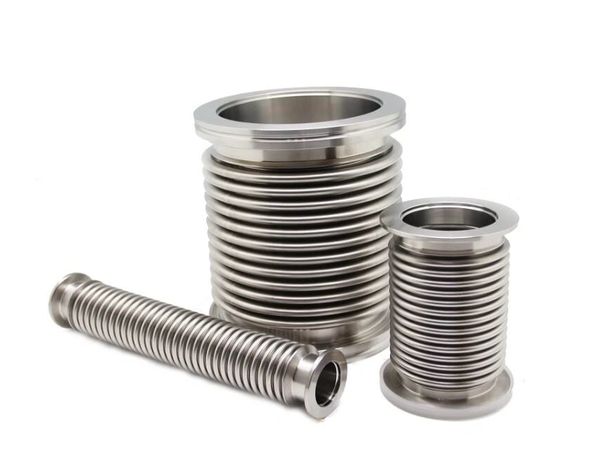

System Hardware
Concept Vacuum hold stock of hardware for your vacuum system, such as bellows, hoses, adaptors, nipples and fast-entry doors. All hardware can be customised as required. Let us know what you need and we will be pleased to quote.
Thermocouples
Concept Vacuum hold stock of thermocouples for measuring temperature in high vacuum and ultra-high vacuum systems. These can be supplied in various diameters (usually Ø0.5mm) and lengths. Our most common supplied thermocouple types are type K, type C and type R. The best thermocouple type for your application depends on the environment and the temperature range of interest. Thermocouple can be supplied in metal sheaths (exposed, grounded or ungrounded junctions), ceramic sheaths or without a sheath (bar wires). We also offer with vacuum compatible connectors and vacuum thermocouple feedthroughs. Let us know what you need and we will be pleased to quote.
Heating Tapes
Concept Vacuum hold stock of heating tapes (silicon or cloths) in various lengths. These can be supplied with temperature controllers, and we also have self limiting heating tapes. Please see our bake out page and let us know what you need. We will be pleased to discuss with you all the options and provide a quotation.

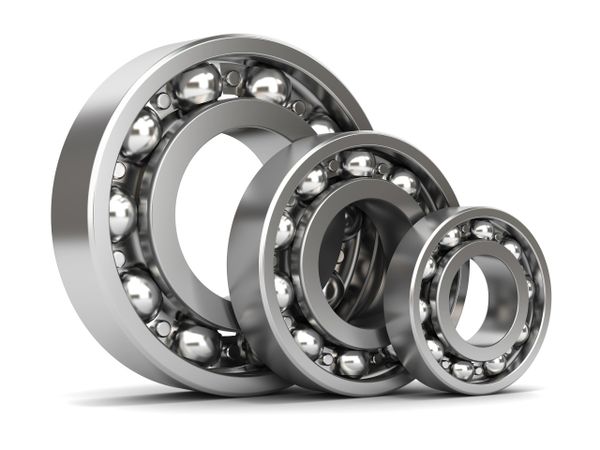

Vacuum Compatible Bearings
Concept Vacuum hold stock of various bearings suitable for use in high vacuum or ultra high vacuum (UHV) environments. Bearings can be offered with molybdenum disulphide or tungsten disulphide dry film lubrication for more demanding applications. Custom bearing solutions are available on request. Let us know what you need and we will be pleased to quote.
